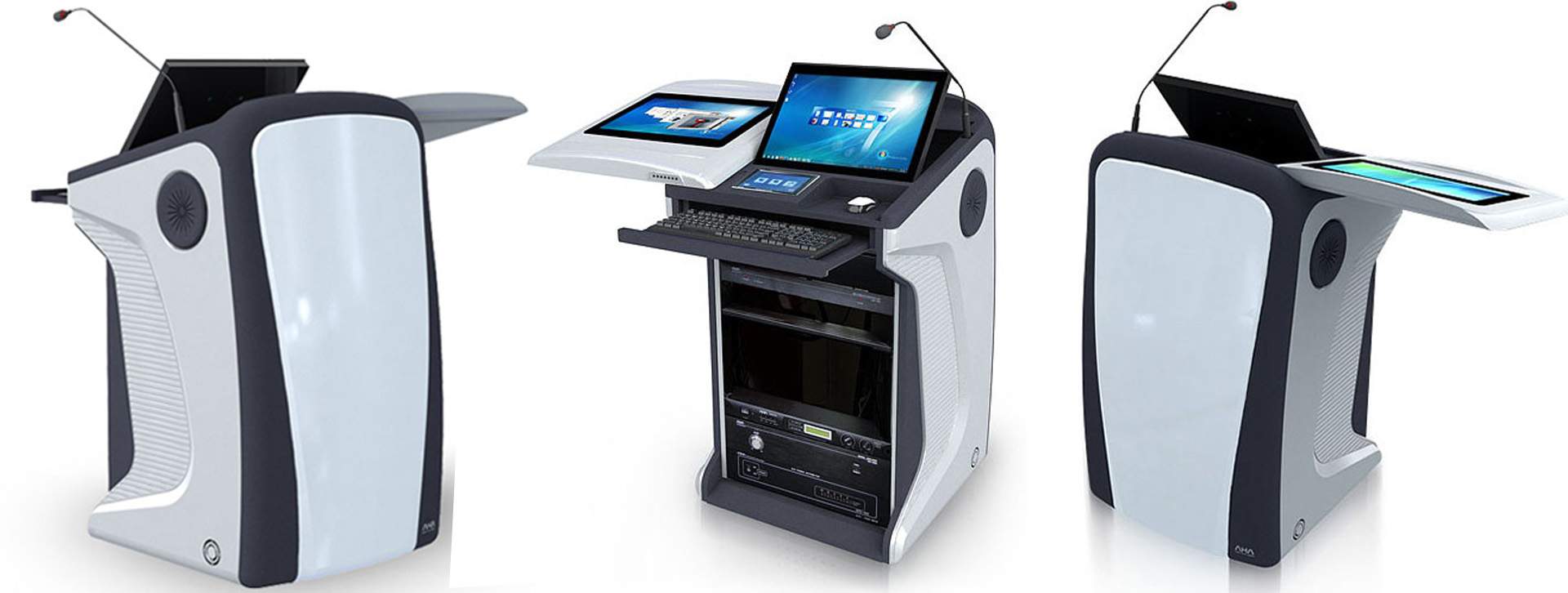

AHA ELF 72LD is a dual monitor Smart Podium, which allows presenter to
address the audience interactively. Dual monitor smart podium comes with
comes with an in-built 22” Interactive touch monitor and 19” Sub Monitor
which works as an extended display for the instructor to view her notes
additionally. Interactive monitor has motorized tilting mechanism.
Smart Podium ELF 72LD has complete audio system with clear, audible and
echo free audio quality such as 80Watt amplifier, speakers, gooseneck,
hand-held and lapel microphones.
It has 7” Touch Controller to control and manage functioning of all
integrated AV equipment like Motorized Screen, Projector, Computer,
Audio System, DVD Player, etc. It has 19” internal Rack to install AV
equipment and Microphons.
AHA Smart Podium is secured with RFID technology and only registered
person can use the podium.
Podium is made of high-quality ABS material. It provides decay-free and corrosion-free body to be used for longer duration
ELF 72LD comes with 22” Interactive Panel and 19” Sub Monitor. It provides better interactivity
AHA Smart Podium has built-in computer system with specific configuration. It can be customized as per the requirement
Podium has integrated high quality sound system which provides crystal-clear audio quality such as amplifier, speakers, microphones
AHA podium provides easy and plug-and-play functionalities to operate integrated AV equipment hassle free
System is designed with integrated RFID technology which restrict unauthorised access of podium
ELF 72LD is fully functional with any projector. It has touch control panel to manage projection of difference AV equipment with ease.
Smart podium AHA ELF 72LD comes with complete input/output interfaces such as USB, VGA in/out, HDMI, LAN, IR, RS-232, Audio in/out, Power etc.
WITH THE HELP OF OUR STATE-OF-THE-ART DIGITAL PODIUM.
| 22”LCD Tablet Monitor | AHALTM-222WG |
|---|---|
| LCD | |
| Resolution | 1920 x 1080 ( FULL HD ) |
| View Area | 477(H) x 268(V) mm– 22 inch |
| Luminance, White | 250 cd/㎡ |
| Contrast Ratio | 1000:1 (typ.) |
| Viewing Angle | 160˚ (H/V) |
| Lamp Life Time | 20,000 Hrs (min) |
| Tablet | |
| Technology | Electromagnetic Resonance |
| Detectable Height | 3~10 mm |
| Position Report Rate | 138pps |
| Pressure Resolution | 1024 Level |
| Sub-monitor | Non Tablet / 22inch wide |
| DC Adapter (model : CGSW-1203000) | AC100-240V 1.5A 50-60HZ / DC12V 3000mA |
| Body | |
| Sliding cover | Opening/Closing the cover easily |
| Soft wheels | Moving podium with convenience |
| Adjusing Monitor Angle system (Actuator) | User can set monitor angle as user's want |
| Dimension | 659(W) x 1,130(H) x 750(D) |
| Multimedia Controller | |
| UHD HDMI Inputs | 3 HDMI INPUT ( HDMI 1.4/HDCP1.2 Compliant) |
| UHD HDMI Outputs | 3 HDMI OUTPUT ( HDMI 1.4/HDCP1.2 Compliant) |
| VGA Out | 1 ( D-SUB 15P) |
| Max. Resolution | 3840 X 2160 (upto UHD) |
| Pixel Frequency | 440MHz |
| Composite Inputs | Video X 2 |
| Composite Output | Video X 1 |
| Bandwidth | 100MHz |
| Return loss | -30dB; 5MHz |
| Switch Control Ports | X 4 |
| Screen Relay Controls | X 2 |
| LAN Selector | 2 Input, 1 Output |
| USB Selector | 2 Input, 1 Output |
| AMP Control Port | X 1 |
| RMS Control Module | X 1 |
| IR Control Port | X 2 |
| Serial RS-232 Ports | X 4 |
| Power(Adaptor) | 12V, 4 |
| Weight | 1Kg |
| Laptop Interface Module | HDMI x1 / Tablet USB x1 / USB x2 / Sound In x2 / LAN x1/ RCA Jack(3P) / Power x1 |
| Wireless Microphone | |
| Frequency ranges | 925.0MHz ~ 932.0MHz |
| Type | Hand Mic(92H) |
| Simultaneous Channels | PLL synthesized |
| Frequency stability | ±0.005% (-10~50℃) |
| Frequency response | 40Hz ~ 18KHz |
| THD (1KHz) | <0. 9% |
| Signal to Noise ratio | 100dB |
| Dimensions | 480W x 40H x 220D |
| Gooseneck Microphone | |
| Polar Pattern | Cardioid |
| Frequency Response | 150Hz ~ 17KHz |
| Sensitivity (0dB=1V/1Pa, 1KHz) | -46dB |
| Output Impedance | 200 ohm Balanced |
| Weight (g) | 200 |
| 7” LCD Controller | |
| Resolution | 800 x 480 |
| View Area | 154(H) x 92(V) mm – 7 inch |
| Interface | RS-232 |
| Touch Type | Resistive |
| Operate System | Win CE5. 0 |
| Power | 5V, 1A |
