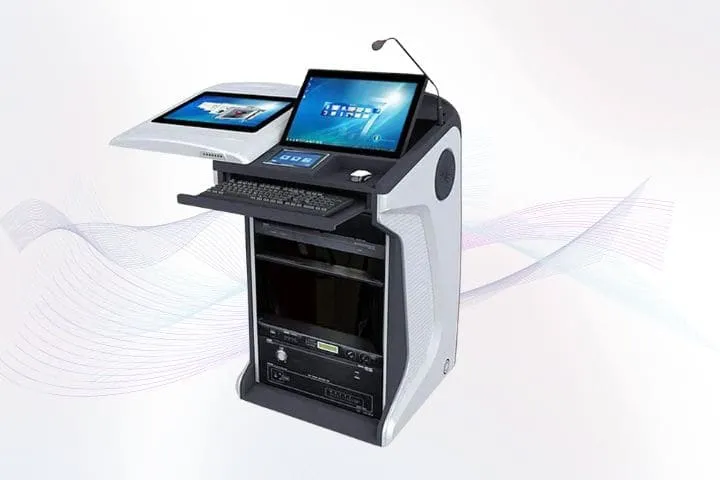

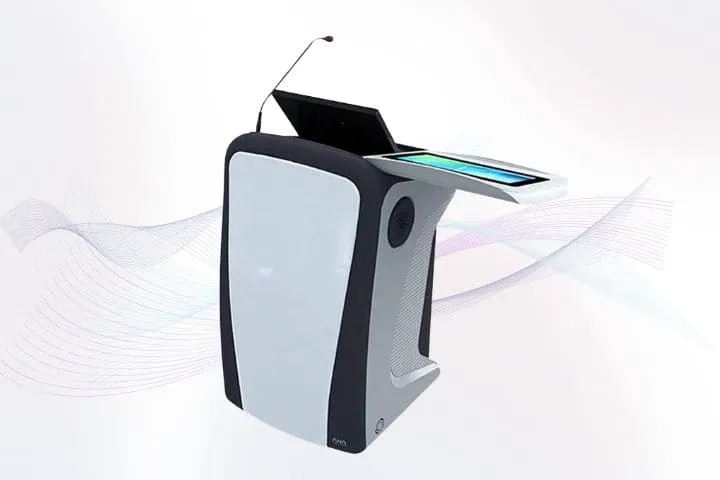

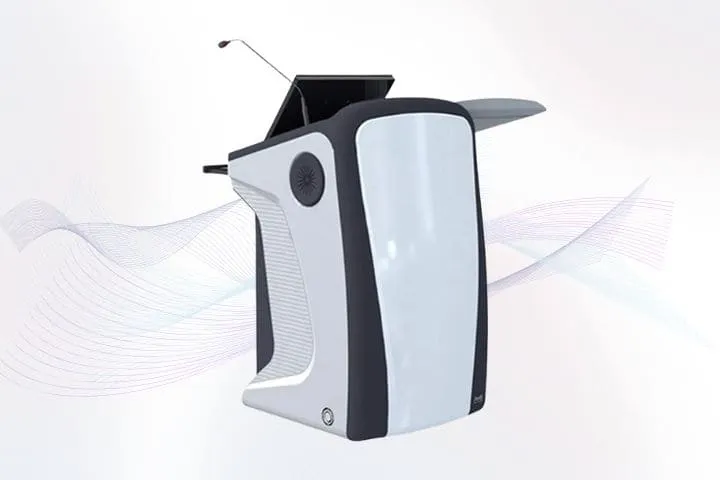

Dual Monitor Digital Podium AHA ELF 72DG comes with in-built 22” interactive monitor and 19” extended sub-monitor which helps the speaker to look his notes. It has 80 Watt amplifier, gooseneck microphone, lapel mic, cordless hand-held mic, and 2 speakers of 40 Watt each. AHA ELF 72DG has 7” touch controller which enables you to control all AV equipment integrated with digital podium such as projector, computer, motorized screen, audio system etc. It has 19” inside rack to place equipment. Dual Monitor Digital Podium is compatible with all multimedia equipment, operating systems, and e-learning software and teaching material. It has Edupen Pro pre-loaded interactive software. It comes with RFID and RMS module.
This podium combines latest and safest technologies of today’s need. Integrated two interactive monitor helps to manage content and flow of presentations easily and efficiently. The podium is secured with RFID technology, due to which only authentic users can access and operate the podium. It also has the RMS system which allows remote control and monitoring of equipment. In buildings it enables to control everything from one place.
Starting at Price: ₹4,80,000 * Varies by configuration — request a custom quote.
Core specifications at a glance — full technical details further down this page.
Made of ABS Plastic, provides splendid look and easy to carry
Dual touch interactive monitors -22” Interactive Panel and 19” extended Sub Monitor, both work with finger touch
Dual Monitor Podium is fully secured with RFID technology. Only registered users can access and use the podium
AHA digital podium is simple to use and operate. Controller allows you to operate any integrated device using its touch buttons
This ePodium facilitates direct and easy connectivity with any projector or Smart Panel. It features a multimedia controller for switching between multiple display outputs with a single click.
Clear and high quality, echo-free audio equipment helps in better understanding and engagement
In-built PC with 4GB RAM, 1TB, Win OS, Keyboard, Mouse to suit all requirements
It has numerous input, output ports for quick connectivity such as HDMI, VGA, Audio, USB, Power, Mic Ports, LAN Port, Power Sockets.
For procurement and technical evaluation.
| 22" LCD Tablet Monitor | AHALTM-222WD (Dual Touch) |
| LCD | |
| Resolution | 1920 x 1080 (FULL HD) |
| View Area | 477(H) x 268(V) mm — 22 inch |
| Luminance, White | 250 cd/m² |
| Contrast Ratio | 1000:1 (typ.) |
| Viewing Angle | 160° (H/V) |
| Lamp Life Time | 20,000 Hrs (min) |
| Tablet | |
| Technology | Electromagnetic Resonance |
| Detectable Height | 3~10 mm |
| Position Report Rate | 138pps |
| Pressure Resolution | 1024 Level |
| Capacitive Touch | |
| Technology | Projected Capacitive |
| Detected Object | Fingers, or Conductive material |
| Touch Points | 10 Points |
| DC Adapter (model: CGSW-1203000) | AC100-240V 1.5A 50-60HZ / DC12V 3000mA |
| Body | |
| Sliding Cover | Opening/Closing the cover easily |
| Soft Wheels | Moving podium with convenience |
| Adjusting Monitor Angle System (Actuator) | User can set monitor angle as user's want |
| Dimension | 659(W) x 1,130(H) x 750(D) |
| Multimedia Controller | |
| UHD HDMI Inputs | 3 HDMI INPUT (HDMI 1.4/HDCP1.2 Compliant) |
| UHD HDMI Outputs | 3 HDMI OUTPUT (HDMI 1.4/HDCP1.2 Compliant) |
| VGA Out | 1 (D-SUB 15P) |
| Max. Resolution | 3840 x 2160 (upto UHD) |
| Pixel Frequency | 440MHz |
| Composite Inputs | Video x 2 |
| Composite Output | Video x 1 |
| Bandwidth | 100MHz |
| Return Loss | -30dB; 5MHz |
| Switch Control Ports | x 4 |
| Screen / ELE Control Ports | x 2 |
| Screen Relay Controls | x 2 |
| LAN Selector | 2 Input, 1 Output |
| USB Selector | 2 Input, 1 Output |
| AMP Control Port | x 1 (When using the external amplifier AMX3030D) |
| RMS Control Module | x 1 |
| IR Control Port | x 2 |
| Serial RS-232 Ports | x 4 |
| Power (Adaptor) | 12V, 4A |
| Weight | 1 Kg |
| Sound | |
| Speaker Out | 40W 4Ω (20W + 20W) Stereo |
| Input | x 3 (Ø5.5 Mono Jack), x 2 (RCA Stereo JACK L/R), x 1 (Ø3.5 Stereo Jack) |
| Output | x 1 (RCA Stereo JACK L/R), x 2 (Ø3.5 Stereo Jack) |
| Laptop Interface Module | |
| Ports | HDMI x1 / Tablet USB x1 / USB x2 / Sound In x2 / LAN x1 / RCA Jack(3P) / Power x1 |
| Digital Amplifier | |
| Output Power (Max) | 280W 4Ω (140W + 140W) Stereo |
| Microphone Inputs | 8~20mV (3 Input) |
| PC/Laptop Inputs | 70mV (2 Input) |
| Audio Inputs | 70mV (2 Input) |
| Audio Outputs | 250mV (3 Output) |
| Frequency Response | 25Hz ~ 20KHz |
| AC Power | 220V to 240V AC, 50/60Hz |
| Dimensions | 88(H) x 482(W) x 223(D) mm |
| Weight | 4.8 Kg |
| Wireless Microphone | |
| Frequency Ranges | 925.0MHz ~ 932.0MHz |
| Type | Hand and Belt |
| Simultaneous Channels | 38CH |
| Frequency Stability | ±0.005% (-10~50°C) |
| Frequency Response | 40Hz ~ 18KHz |
| THD (1KHz) | < 0.9% |
| Signal to Noise Ratio | 100dB |
| Dimensions | 480W x 40H x 220D |
| Gooseneck Microphone | |
| Polar Pattern | Cardioid |
| Frequency Response | 150Hz ~ 17KHz |
| Sensitivity (0dB=1V/1Pa, 1KHz) | -46dB |
| Output Impedance | 200 ohm Balanced |
| Weight (g) | 200 |
| 7" LCD Controller | |
| Resolution | 800 x 480 |
| View Area | 154(H) x 92(V) mm — 7 inch |
| Interface | RS-232 |
| Touch Type | Resistive |
| Operate System | Win CE5.0 |
| Power | 5V, 1A |
| Power Distributor | |
| AC Outputs | 5CH (MAX 150W) |
| DC Outputs | 12V/4A x 4, 9V/3A x 1, 5V/1A x 1 |
| Input | AC Input 100-240V, 50-60Hz, 10A |
| Dimensions | 480(W) x 88(H) x 298(D) mm |
| Weight | 5 Kgs |
