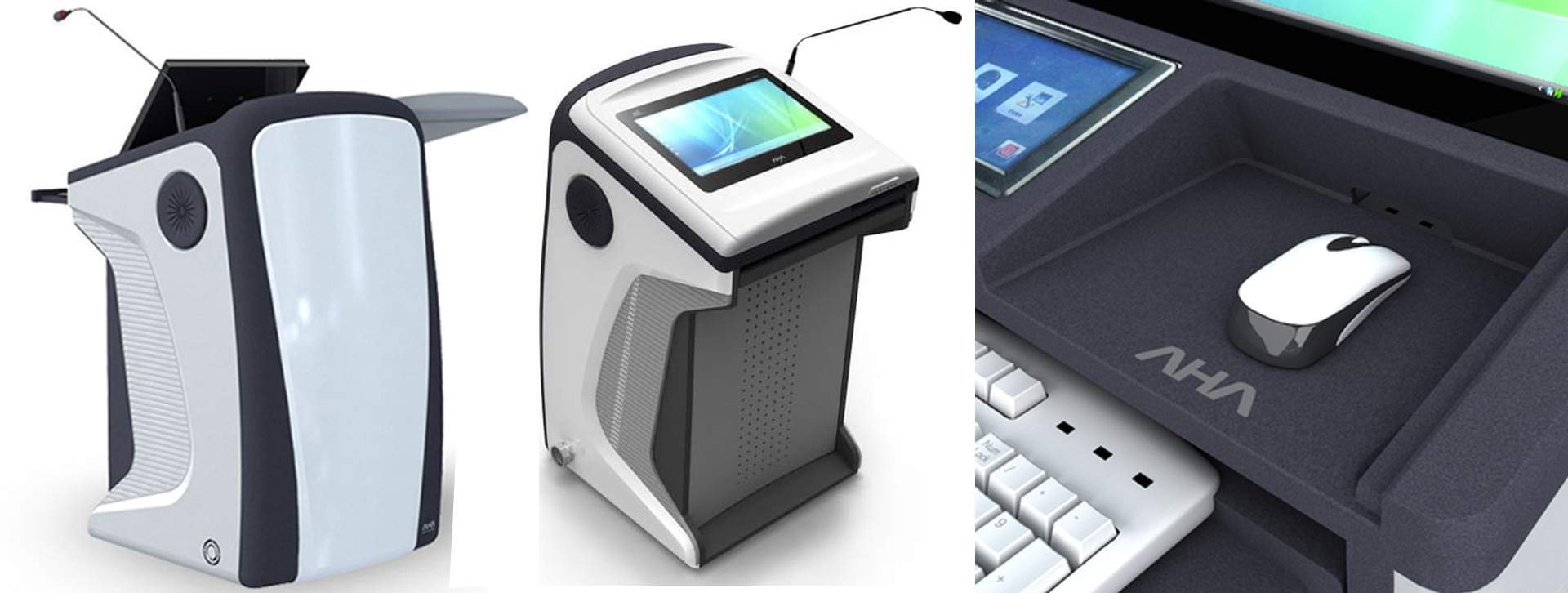

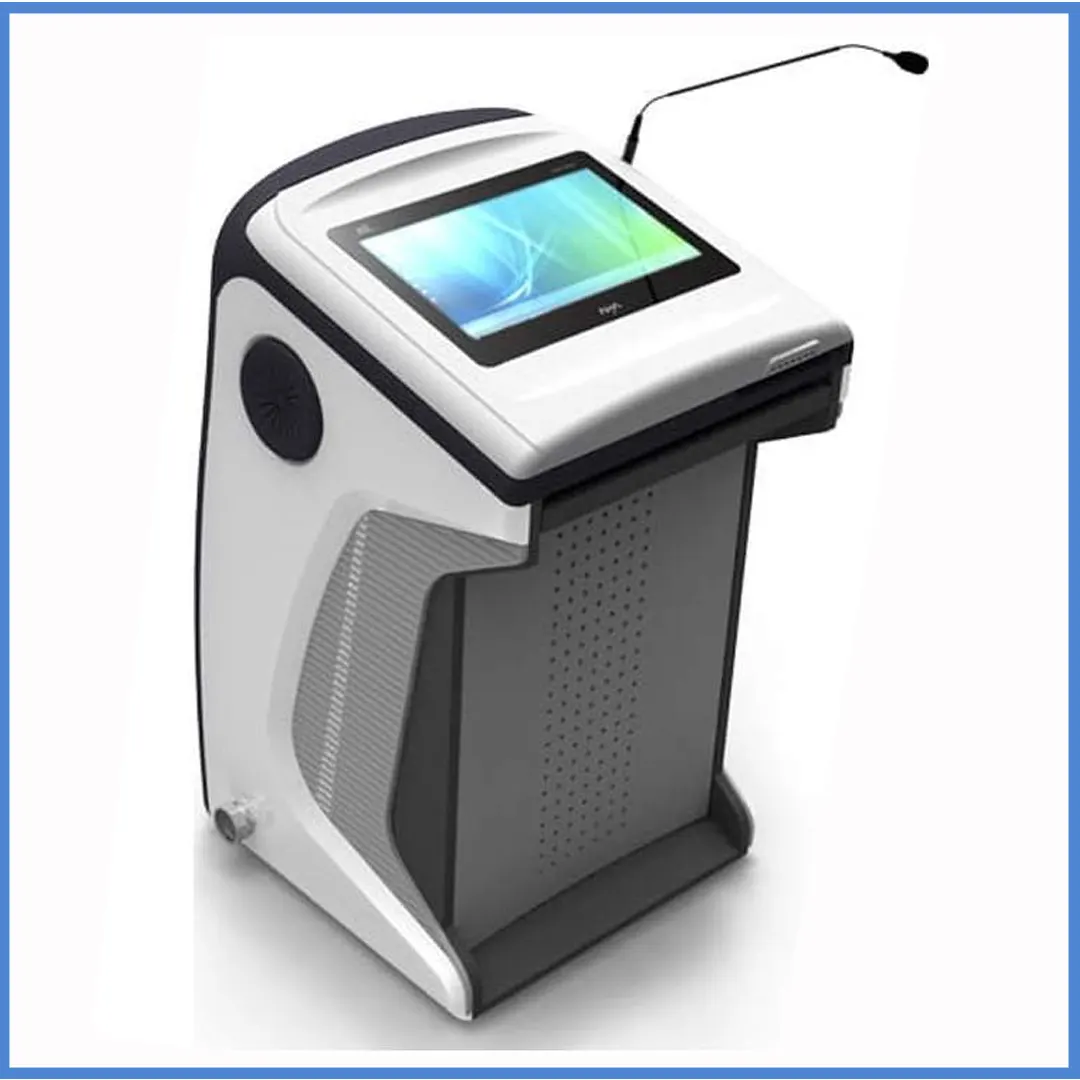

AHA ELF-72LS is a single interactive panel digital
podium with complete AV equipment and built-in RMS and RFID control and
security. AHA ELF-72LS is a complete solution for conference room and
provides excellent events experience. It comes with an integrated 22”
interactive monitor with in-built motorized tilting.
Digital Podium ELF-72LS integrates computer,
projector, controller, motorised screen, and audio system etc. It has
19” rack to place AV equipment.
Audio system comprises of 80Watt amplifiers, speakers, gooseneck
microphone, hand-held and lapel microphone etc.
AHA Smart Podium ELF 72LS is equipped with RFID
security which allows only authenticated users to access and operate the
digital podium.

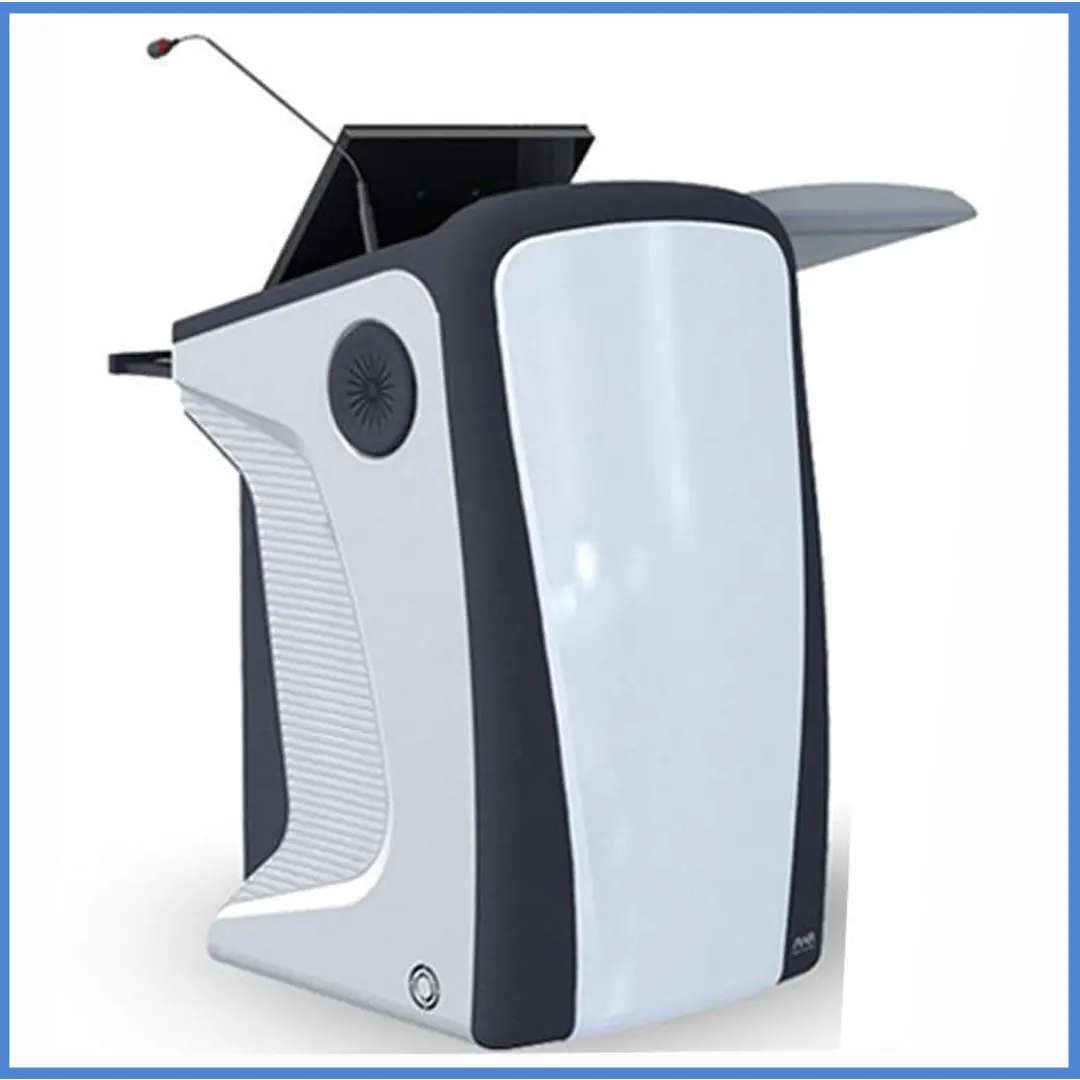

AHA ELF 72LS is manufactured using top quality ABS material. Which ensures professional and elegant look of podium and offers longer life
It has 22” integrated Interactive Panel. It allows to run the PC and other programs using your fingers or stylus
It has inbuilt PC with pre-configured. You can opt for desired configuration to meer your requirement
It is equipped with high quality and complete audio system. It comprises of amplifier, speakers and microphones etc.
Podium provides simple interface and functions to operate with ease. All the integrated devices are completely ready to use
Digital Podium ELF 72LS is secured with RFID technology, which allows only registered users to access the podium
ELF-72LS is pre-configured to work with any projector (LCD or DLP). It has touch controller with switching mechanism to display projection of any equipment
It has complete input/output interfaces such as VGA in/out, HDMI in/out, USB, RJ45, XLR, Audio in/out, Power Sockets etc
WITH THE HELP OF AHA DIGITAL PODIUM.
| 22”LCD Tablet Monitor | AHALTM-222WG |
|---|---|
| LCD | |
| Resolution | 1920 x 1080 ( FULL HD ) |
| View Area | 477(H) x 268(V) mm– 22 inch |
| Luminance, White | 250 cd/㎡ |
| Contrast Ratio | 1000:1 (typ.) |
| Viewing Angle | 160˚ (H/V) |
| Lamp Life Time | 20,000 Hrs (min) |
| Tablet | |
| Technology | Electromagnetic Resonance |
| Detectable Height | 3~10 mm |
| Position Report Rate | 138pps |
| Pressure Resolution | 1024 Level |
| DC Adapter (model : CGSW-1203000) | AC100-240V 1.5A 50-60HZ / DC12V 3000mA |
| Body | |
| Sliding cover | Opening/Closing the cover easily |
| Soft wheels | Moving podium with convenience |
| Adjusing Monitor Angle system (Actuator) | User can set monitor angle as user's want |
| Dimension | 659(W) x 1,130(H) x 750(D) |
| Multimedia Controller | |
| UHD HDMI Inputs | 3 HDMI INPUT ( HDMI 1.4/HDCP1.2 Compliant) |
| UHD HDMI Outputs | 3 HDMI OUTPUT ( HDMI 1.4/HDCP1.2 Compliant) |
| VGA Out | 1 ( D-SUB 15P) |
| Max. Resolution | 3840 X 2160 (upto UHD) |
| Pixel Frequency | 440MHz |
| Composite Inputs | Video X 2 |
| Composite Output | Video X 1 |
| Bandwidth | 100MHz |
| Return loss | -30dB; 5MHz |
| Switch Control Ports | X 4 |
| Screen Relay Controls | X 2 |
| LAN Selector | 2 Input, 1 Output |
| USB Selector | 2 Input, 1 Output |
| AMP Control Port | X 1 |
| RMS Control Module | X 1 |
| IR Control Port | X 2 |
| Serial RS-232 Ports | X 4 |
| Power(Adaptor) | 12V, 4 |
| Weight | 1Kg |
| Laptop Interface Module | HDMI x1 / Tablet USB x1 / USB x2 / Sound In x2 / LAN x1/ RCA Jack(3P) / Power x1 |
| Wireless Microphone | |
| Frequency ranges | 925.0MHz ~ 932.0MHz |
| Type | Hand Mic(92H) |
| Simultaneous Channels | 38CH |
| Frequency stability | ±0.005% (-10~50℃) |
| Frequency response | 40Hz ~ 18KHz |
| THD (1KHz) | <0. 9% |
| Signal to Noise ratio | 100dB |
| Dimensions | 480W x 40H x 220D |
| Gooseneck Microphone | |
| Polar Pattern | Cardioid |
| Frequency Response | 150Hz ~ 17KHz |
| Sensitivity (0dB=1V/1Pa, 1KHz) | -46dB |
| Output Impedance | 200 ohm Balanced |
| Weight (g) | 200 |
| 7” LCD Controller | |
| Resolution | 800 x 480 |
| View Area | 154(H) x 92(V) mm – 7 inch |
| Interface | RS-232 |
| Touch Type | Resistive |
| Operate System | Win CE5. 0 |
| Power | 5V, 1A |
